JSC/JSCM standard 60-68 point host

Home page

JSC/JSCM standard 60-68 point host

Pulse axes: 4–12 axes
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with SE/CE series, up to 16 modules

Classification：

Small PLC

JSC/JSCM Standard Series PLC

60 points

Related Products

JSC/JSCM standard 14 point host

Pulse axes: 1–3 axes
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with SE/CE series, up to 16 modules

JSC/JSCM standard 16 point host

Pulse axes: 1–2 axes
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with SE/CE series, up to 16 modules

JSC/JSCM standard 24 point host

Pulse axes: 2–6 axes
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with SE/CE series, up to 16 modules

JSC/JSCM standard 32 point host

Pulse axes: 4–8 axes
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with SE/CE series, up to 16 modules

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Feature Description

Motion Control M: Model JSCM-14T2-D — "M" indicates PLC with electronic cam and multi-axis interpolation (3+ axes).

CAN BUS: Model JSC-14T2-C-D: "C" = CANopen bus, supports up to 16 slaves (servo, stepper, valve island, etc.). When using our CAN bus PLC host, pair only with our CAN bus servos. Do not mix with other brands.

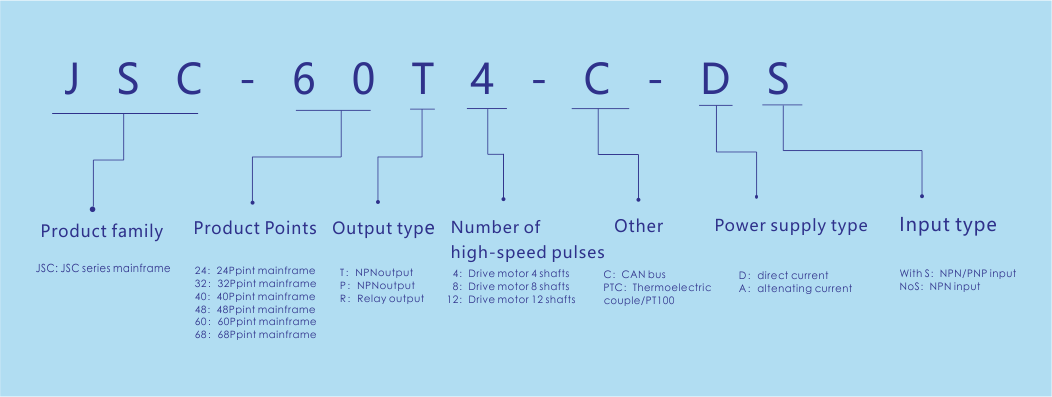

Product Naming Rule

Transistor Output

Model	Function	Other Models
	The JSC series includes RTC function, but factory default has no battery. Specify if RTC is required when ordering. Only compatible with SE or CE series. Mixing with other series may cause malfunction.	"×" = Not available. "√" = Available for normal ordering.
		Motion Control (M)	Motion Control (M)	PNP Output	AC Power Supply
JSC-60T4-D	60-point host； 36DI(NPN)/24DO(NPN), including: 4 points (X0~X3) Max 200K high-speed input/ 2 points Max 50K high-speed input, 3-channel AB phrase, 4 points (first 4 axes) Max 200k high-speed output (factory default maximum frequency is 100k)； Motion Control: Drives up to 4 motors; Programming: Supports C language; Program Capacity: 60K; Communication port: RS232/RS485/USB, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256); Power supply: DC24V； With perpetual calendar function, but no battery installed by default. Specify if required when ordering.	√ JSCM-60T4-D	×	×	√ JSC-60T4-A
JSC-60T12-D	60-point host； 36DI(NPN)/24DO(NPN), including: 4 points (X0~X3) Max 200K high-speed input/ 2 points（X4~X5) Max 50K high-speed input, 3-channel AB phrase, 8 points (first 8 axes) Max 200k high-speed output (factory default maximum frequency is 100k), 4 points (last 4 axes) up to 50 kHz； Motion Control: Drives up to 12 motors; Programming: Supports C language; Program Capacity: 60K; Communication port: RS232/RS485/USB, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256); Power supply: DC24V； With perpetual calendar function, but no battery installed by default. Specify if required when ordering.	√ JSCM-60T12-D	×	×	√ JSC-60T12-A
JSC-68T4-D	68-point host； 36DI(NPN)/32DO(NPN), including: 4 points (X0~X3) Max 200K high-speed input/ 2 points（X4~X5) Max 50K high-speed input, 3-channel AB phrase, 4 points Max 200k high-speed output (factory default maximum frequency is 100k)； Motion Control: Drives up to 4 motors; Programming: Supports C language; Program Capacity: 60K; Communication port: RS232/RS485/USB, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256); Power supply: DC24V； With perpetual calendar function, but no battery installed by default. Specify if required when ordering.	√ JSCM-68T4-D	×	×	×

Relay Output

Model	Function	Other Models
	The JSC series includes RTC function, but factory default has no battery. Specify if RTC is required when ordering. Only compatible with SE or CE series. Mixing with other series may cause malfunction.	"×" = Not available. "√" = Available for normal ordering.
		NPN/PNP Input	AC Power Supply
JSC-60R-D	60-point host； 36DI(NPN)/24DO(Relay), including: 6 points (X0~X5, 3-channel phrase) Max 50K high-speed input； Programming: Supports C language; Program Capacity: 60K; Communication port: RS232/RS485/USB, the left extension interface can be connected to the Internet of Things module or 485 communication modules, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256); Power supply: DC24V； With perpetual calendar function, but no battery installed by default. Specify if required when ordering.	√ JSC-60R-DS	√ JSC-60R-A

Product Features

The M point is M0-M19999, D is D0-D29999, and the power-down hold range is the same as JS.
The full series shares one firmware and supports C language.
50% faster processing speed than the JS series.
Better USB drive compatibility — supports USB 2.0 and USB 3.0 drives.
The firmware supports updating in a power-on state.

Product Wiring

Product Size
