JSC/JSCM standard 14 point host

+
  • undefined

JSC/JSCM standard 14 point host

Pulse axes: 1–3 axes
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with SE/CE series, up to 16 modules

Classification：

Small PLC

JSC/JSCM Standard Series PLC

14 points

Related Products

JSC standard 32 point host

JSC standard 32 point host

Program capacity: 30K program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JSC standard 40 point host

JSC standard 40 point host

Program capacity: 30K program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JSC standard 48 point host

JSC standard 48 point host

Program capacity: 30K program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JSC standard 60 point host

JSC standard 60 point host

Program capacity: 30K program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Feature Description

  • Motion Control M: Model JSCM-14T2-D — "M" indicates PLC with electronic cam and multi-axis interpolation (3+ axes).
  • CAN BUS: Model JSC-14T2-C-D: "C" = CANopen bus, supports up to 16 slaves (servo, stepper, valve island, etc.). When using our CAN bus PLC host, pair only with our CAN bus servos. Do not mix with other brands.

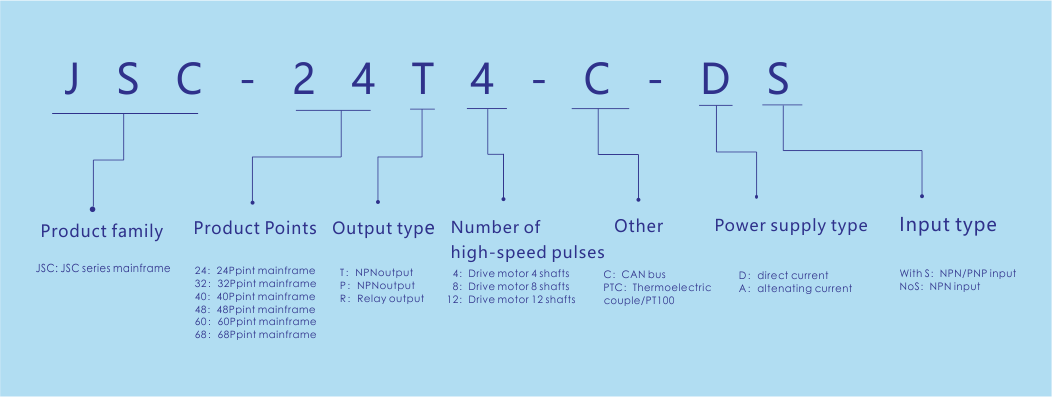

Product Naming Rule



Transistor Output



Model

Function

Other Models

The JSC series includes RTC function, but factory default has no battery.
Specify if RTC is required when ordering
Only compatible with SE or CE series.
Mixing with other series may cause malfunction.

"×" = Not available.

 "√" = Available for normal ordering.

Motion Control (M)

CAN Bus

PNP Output

AC Power Supply

JSC-14T2-D
14-point host；
8DI(NPN)/6DO(NPN), including: 2 points (X0~X1) Max 200K high-speed input /4 points (X2~X5) Max 50K high-speed input, 3-channel AB phase, 2 points Max 200k high-speed output (factory default maximum frequency is 100k)；
Motion Control: Drives up to 2 motors;
Programming: Supports C language;
Program Capacity: 60K;
Communication port: RS232/RS485, 16 expansion modules can be connected to the right side (the maximum digital input/output of the host is 256/256);
Power supply: DC24V;
With perpetual calendar function, but no battery installed by default. Specify if required when ordering.

√

JSCM-14T2-D

√

JSC-14T2-C-D

×

×

JSC-14T3-D

14-point host;
8DI(NPN)/6DO(NPN), including: 2 points (X0 ~X1) Max 200k high-speed input (X0-X1, 1-channel AB phase)/4 points (X2~X5) Max 50K high-speed input (2-channel AB phase), 3 points Max 200k high-speed output (factory default maximum frequency is 100k);
Motion Control: Drives up to 3 motors;
Programming: Supports C language;
Program Capacity: 60K;
Communication port: RS232/RS485, 16 expansion modules can be connected to the right side (the maximum digital input/output of the host is 256/256);
Power supply: DC24V;
With perpetual calendar function, but no battery installed by default. Specify if required when ordering.

√

JSCM-14T3-D

×

√

JSC-14P3-D

×

JSC-14T3L-D

4-point host;
8DI(NPN)/6DO(NPN), including: 2 points (X0 ~X1) Max 200k high-speed input (X0-X1, 1-channel AB phase)/4 points (X2~X5) Max 50K high-speed input (2-channel AB phase), 3 points Max 200k high-speed output (factory default maximum frequency is 100k);
Motion Control: Drives up to 3 motors;
Programming: Supports C language;
Program Capacity: 60K;
Its special register D1138 = 1 means the D register retention area is fixed at D500–D999.
Communication port: RS232/RS485, 16 expansion modules can be connected to the right side (the maximum digital input/output of the host is 256/256);
Power supply: DC24V;
With perpetual calendar function, but no battery installed by default. Specify if required when ordering.

√

JSCM-14T3L-D

×

×

×

Relay Output

Model

Function

Other Models

The JSC series includes RTC function, but factory default has no battery.
Specify if RTC is required when ordering
Only compatible with SE or CE series.
Mixing with other series may cause malfunction.

"×" = Not available.

 "√" = Available for normal ordering.

NPN/PNP Input

AC Power Supply

JSC-14R-D

14-point host；
8DI(NPN)/6DO(Relay), including: 6 points (X0~X5) 50K high-speed input
Programming: Supports C language;
Program Capacity: 60K;
Communication port: RS232/RS485, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256);
Power supply: DC24V；
With perpetual calendar function, but no battery installed by default. Specify if required when ordering.

×

×

JSC-14RL-D

14-point host；
16DI(NPN)/8DO(Relay), including: 6 points (X0~X5) 50K high-speed input
Programming: Supports C language;
Program Capacity: 60K;
Its special register D1138 = 1 means the D register retention area is fixed at D500–D999.
Communication port: RS232/RS485, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256);
Power supply: DC24V；

×

×

JSC-14RF-D

14-point host；
16DI(NPN)/8DO(Relay), including: 6 points (X0~X5) 50K high-speed input
Programming: Supports C language;
Program Capacity: 60K;
Communication port: RS232(COM1)/RS232(COM2)/RS485(COM3), the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256);
Power supply: DC24V；
With perpetual calendar function, but no battery is installed by default. Specify if required when ordering.

×

×



Product Features

  • The M point is M0-M19999, D is D0-D29999, and the power-down hold range is the same as JS.
  • The full series shares one firmware and supports C language.
  • 50% faster processing speed than the JS series.
  • Better USB drive compatibility — supports USB 2.0 and USB 3.0 drives.
  • The firmware supports updating in a power-on state
