JSC standard 40 point host
JSC standard 40 point host
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series
Classification：
Small PLC
JSC standard series
40 points
Related Products
JSC standard 24 point host
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series
JSC standard 32 point host
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series
JSC standard 48 point host
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series
JSC standard 60 point host
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series
富文本1
富文本2
富文本3
富文本4
Product Description
Specifications
Relevant Information
Product Functions
| Model | Function |
|
JSC-40T4-C-D
|
40-point host, 24DI (NPN)/16DO (NPN), including: 6 points of maximum 200K high-speed input (X0-X5, 3-way AB phase), 4 points of maximum 200k high-speed output (factory default maximum frequency is 100k), drive motor 4 sets. Support C language, program capacity 30K.
Communication interface: RS232/RS485/USB/CANopen bus (with 16 CAN slaves:such as servo, stepper, valve terminal, etc.), 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply. |
|
JSC-40T4-C-A
|
40-point host, 24DI (NPN)/16DO (NPN), including: 6 points of maximum 200K high-speed input (X0-X5, 3-way AB phase), 4 points of maximum 200k high-speed output (factory default maximum frequency is 100k), drive motor 4 sets. Support C language, program capacity 30K.
Communication interface: RS232/RS485/USB/CANopen bus (with 16 CAN slaves: such as servo, stepper, valve terminal, etc.), 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), AC100V-240V power supply |

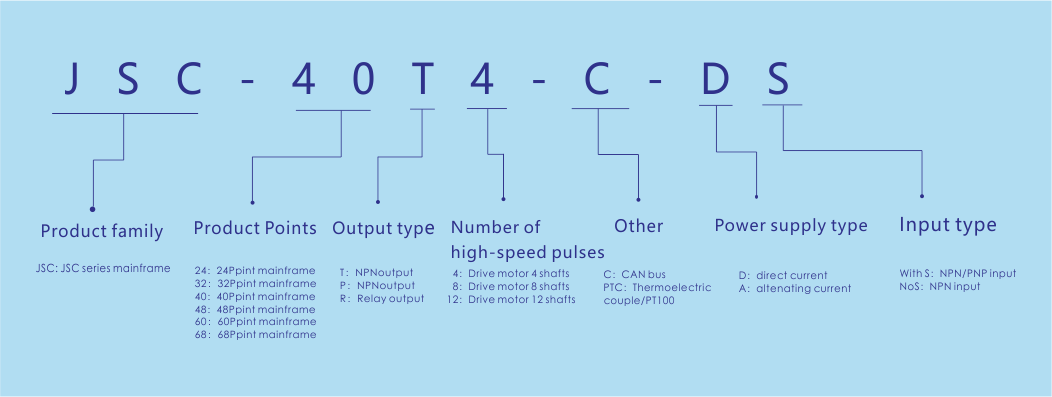

Naming Rules
Product Features
-
The M point is M0-M19999, D is D0-D29999, and the power-down hold range is the same as JS.
-
All series of the same firmware, the whole series supports C language.
-
50% faster processing speed than JS series.
-
USB flash drive compatibility is higher and can recognize USB 2.0, USB3.0 USB flash drive.
-
The firmware supports updating in a power-on state
Product wiring
Product size
