JS standard 16 point host

+
  • undefined

JS standard 16 point host

Program capacity: 16K program area
Input power supply: DC24V
Communication port: RS232/RS485
Expandable with: SE and CE series

Classification：

Small PLC

JS standard series

16 points

Related Products

JS standard 14 point host

JS standard 14 point host

Program capacity: 16K program area
Input power supply: DC24V
Communication port: RS232/RS485
Expandable with: SE and CE series

See More

JSC standard 24 point host

JSC standard 24 point host

Program capacity: 30K program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JS standard 32 point host

JS standard 32 point host

Program capacity: 16K-30k program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JS standard 40 point host

JS standard 40 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/Open CAN (with 16 CAN servo or stepping)/RS485/USB
Expandable with: SE and CE series

See More

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Product Functions

Model Function
JS-16R-D
16 point host, 8DI/8DO, 4-point maximum 50k high-speed input (X0-X3)/4-point 10k high-speed input, 8-point relay output.
Communication interface: RS232, 16 expansion modules can be connected on the right (the maximum digital input/output connected to the host is 256/256), DC24V power supply
JS-16T-D
16 point host, 8DI/8DO, 4-point maximum 50k high-speed input (X0-X3)/4-point 10k high-speed input, 4-point 10k high-speed output, NPN output.
Communication interface: RS232/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output connected to the host is 256/256), DC24V power supply
JS2-16T1-D
16 points host, 8DI/8DO, 2 points maximum 200k high-speed input (X0-X1, 1 channel AB phase), 1 point maximum 200K high-speed output, other points maximum 10K high-speed output, NPN output.
Communication interface: RS232, 16 expansion modules can be connected on the right (the maximum digital input/output connected to the host is 256/256), DC24V power supply
JS-1006T2-D
16-point host, 10DI (NPN)/06DO (NPN), including: 2 points of maximum 200k high-speed output (factory default maximum frequency is 100k), drive motor 2 sets. C language is not supported, program capacity 16K. The D register power-down memory area is D500-D999.
Communication interface: RS232/RS485/USB, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), no perpetual calendar, DC24V power supply.
JS-16T-DS
16-point host, 8DI(NPN/PNP)/8DO (NPN), of which: 4 points (X0-X3)maximum 50k high-speed input / 4 points 10k high-speed input. C language is not supported, program capacity 16K. The D register power-down memory area is D500-D999.
Communication interface: RS232/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply.
JS-16T1-DS
16-point host, 8DI (NPN/PNP)/8DO (NPN), including: 2 points of maximum 200k high-speed input (X0-X1, 1 channel AB phase), 1 point of maximum 200k high-speed output (factory default maximum frequency is 100k), drive motor 1. C language is not supported, program capacity 16K. The D register power-down memory area is D500-D999.
Communication interface: RS232, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply.
JS-16R-DS
16-point host, 8DI (NPN/PNP)/8DO (relay output), of which: 4 points (X0-X3) maximum 50k high-speed input / 4 points maximum 10k high-speed input. C language is not supported, program capacity 16K. The D register power-down memory area is D500-D999.
Communication interface: RS232. The right side can be connected to 16 expansion modules (the maximum digital input/output of the host is
256/256), DC24V power supply.

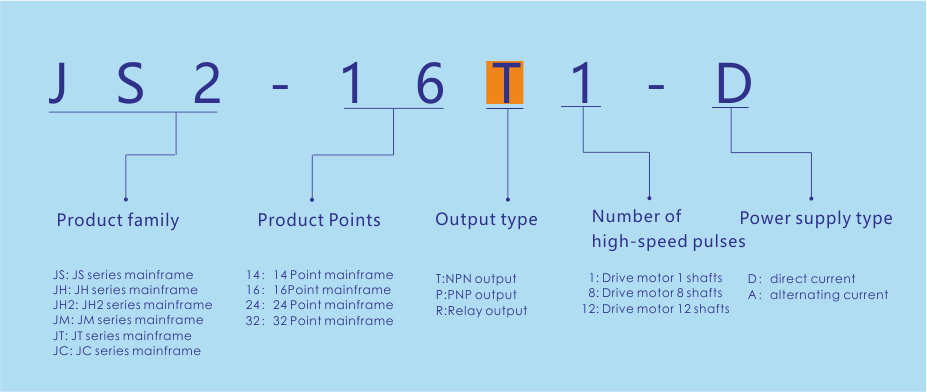

Naming Rules

Product Features

  • Pulse control mode: can drive up to 12 axis stepper/servo motor.
  • Supports single-phase high-speed counting up to 12 channels and differential high-speed counting input up to 6 channels: maximum frequency 200kHz.
  • With Ethernet function, support online monitoring, download programs, support MODBUS TCP/IP communication, free protocol communication.
  • Using RS232, RS485 dual communication ports, can realize HMI or PC communication, compatible with MODBUS ASCII, MODBUS RTU communication protocol.
  • Advanced power-down preservation technology, program permanent storage.
  • Expandable to 256 isolated inputs/outputs.
  • The program is encrypted and can choose whether to upload or not to protect the user's intellectual property rights.
  • You can download the program by plugging in a USB stick or use a dual-ended USB cable to download and monitor the program, the communication speed is faster, and the download rate can reach 12Mbps.

Product wiring

 Product size



Technical Parameter

Electrical Specifications
