JS standard 14 point host

+
  • undefined

JS standard 14 point host

Program capacity: 16K program area
Input power supply: DC24V
Communication port: RS232/RS485
Expandable with: SE and CE series

Classification：

Small PLC

JS standard series

14 points

Related Products

JS standard 16 point host

JS standard 16 point host

Program capacity: 16K program area
Input power supply: DC24V
Communication port: RS232/RS485
Expandable with: SE and CE series

See More

JSC standard 24 point host

JSC standard 24 point host

Program capacity: 30K program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JS standard 32 point host

JS standard 32 point host

Program capacity: 16K-30k program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485/USB
Expandable with: SE and CE series

See More

JS standard 40 point host

JS standard 40 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/Open CAN (with 16 CAN servo or stepping)/RS485/USB
Expandable with: SE and CE series

See More

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Product Functions

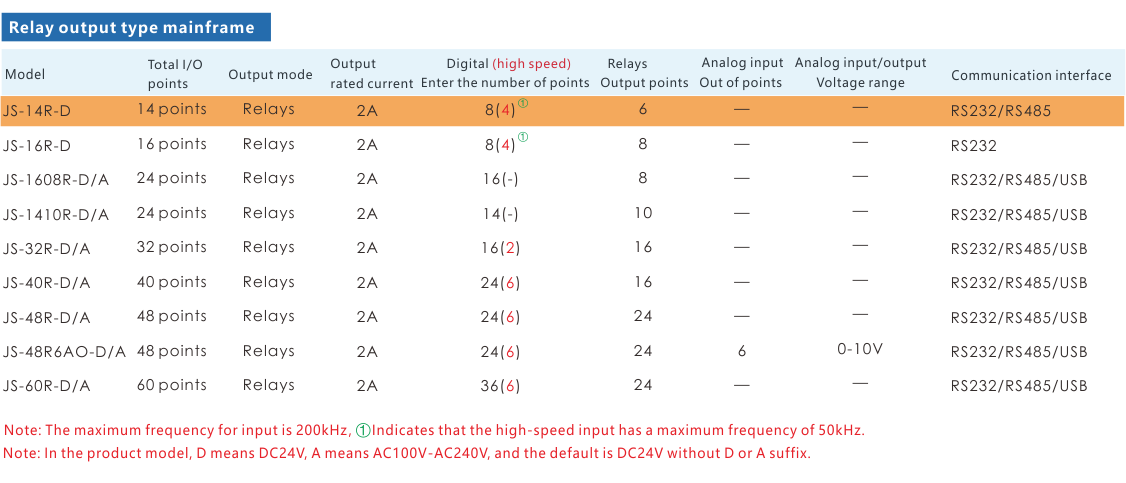

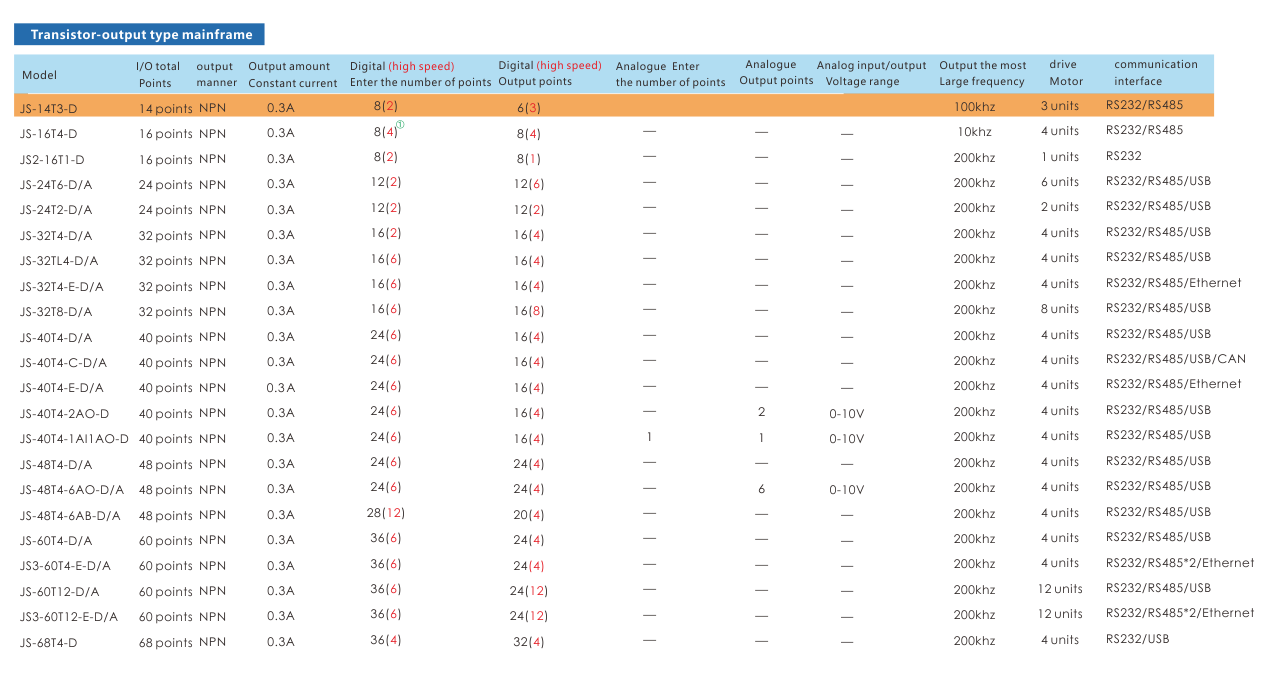

Model Function
JS-14R-D
14 point host, 8DI/6DO, 4-point 20k high-speed input (X0-X3), 4-point 10k high-speed input, 6-point relay output.
Communication interface: RS232/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output connected to the host is 256/256), DC24V power supply
JS-14RL-D
14-point host, 8DI(NPN)/6DO(relay output), which: 4 points (X0-X3)20k high-speed input /4 points 10k high-speed input, does not support C language, program capacity 16K. The power down save area of register D is D500-D999.
Communication interface :RS232/RS485, 16 expansion modules can be connected to the right (the maximum digital input/output of the host is 256/256),DC24V power supply.
JS-14R3-D
14 point host, 8DI/6DO, 4-point 20k high-speed input (X0-X3), 4-point 10k high-speed input, 6-point relay output.
Communication interface: RS232 * 2/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output connected to the host is 256/256), DC24V power supply

JS-14R3L-D

14-point host, 8DI (NPN)/6DO (relay output), of which: 4 points (X0-X3) 20k high-speed input / 4 points 10k high-speed input. C language is not supported, program capacity 16K. The D register power-down memory area is D500-D999.
Communication interface: RS232*2/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply.
JS-14T3-D
14 points host, 8DI/6DO, 2 points maximum 200k high-speed input (X0-X1), 3 points maximum 100k high-speed output, NPN output, and 3 driving motors.
Communication interface: RS232/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output connected to the host is 256/256), DC24V power supply

JS-14T3L-D

14-point host, 8DI (NPN)/6DO (NPN), of which: 2 points (X0-X1) maximum 100k high-speed input / 3 points maximum 200k high-speed output (factory default maximum frequency is 100k), 3 drive motors, do not support C language, program capacity 16K. The D register power-down memory area is D500-D999.
Communication interface: RS232/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply.

JS-14R-DS

14-point host, 8DI (NPN/PNP)/6DO (relay output), of which: 4 points (X0-X3) 20k high-speed input / 4 points 10k high-speed input, do not support C language, program capacity 16K. Communication interface: RS232/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply.

JS-14R3-DS

14-point host, 8DI (NPN/PNP)/6DO (relay output), of which: 4 points (X0-X3) 20k high-speed input / 4 points 10k high-speed input. C language is not supported, program capacity 16K. Communication interface:
RS232*2/RS485, 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256), DC24V power supply.

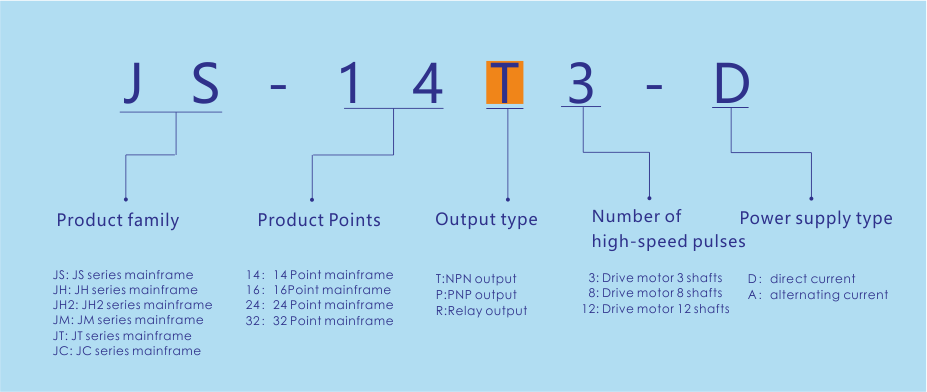

Naming Rules

Product Features

  • Pulse control mode: can drive up to 12 axis stepper/servo motor.
  • Supports single-phase high-speed counting up to 12 channels and differential high-speed counting input up to 6 channels: maximum frequency 200kHz.
  • With Ethernet function, support online monitoring, download programs, support MODBUS TCP/IP communication, free protocol communication.
  • Using RS232, RS485 dual communication ports, can realize HMI or PC communication, compatible with MODBUS ASCII, MODBUS RTU communication protocol.
  • Advanced power-down preservation technology, program permanent storage.
  • Expandable to 256 isolated inputs/outputs.
  • The program is encrypted and can choose whether to upload or not to protect the user's intellectual property rights.
  • You can download the program by plugging in a USB stick or use a dual-ended USB cable to download and monitor the program, the communication speed is faster, and the download rate can reach 12Mbps.

Product wiring

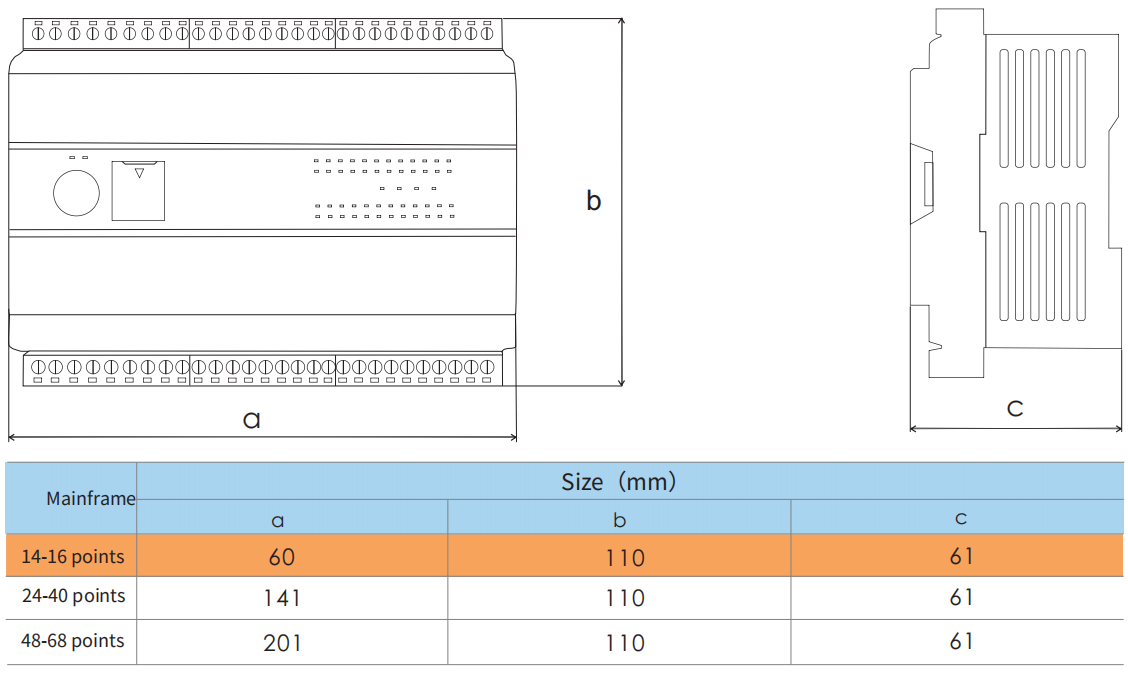

Product size



Technical Parameter

Electrical Specifications
