JTC/JTCM Compact 16 point host
JTC/JTCM Compact 16 point host
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485
Expandable with TE series, up to 16 modules
Classification：
Small PLC
JTC/JTCM Compact Series PLC
16 points
Related Products
JTC/JTCM Compact 14 point host
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485/USB/Ethernet
Expandable with TE series, up to 16 modules
JTC/JTCM Compact 32 point host
Electronic cam: Supported on M models only
Program capacity: 60 K
C language: Supported
Communication ports: RS232 / RS485/USB/Ethernet*2
Expandable with TE series, up to 16 modules
富文本1
富文本2
富文本3
富文本4
Product Description
Specifications
Relevant Information
Feature Description
- Motion Control M: Model JTCM-16T4 — "M" indicates PLC with electronic cam and multi-axis interpolation (3+ axes).
- CAN BUS: Model JTC-32T8-EC: "C" = CANopen bus, supports up to 16 slaves (servo, stepper, valve island, etc.). When using our CAN bus PLC host, pair only with our CAN bus servos. Do not mix with other brands.

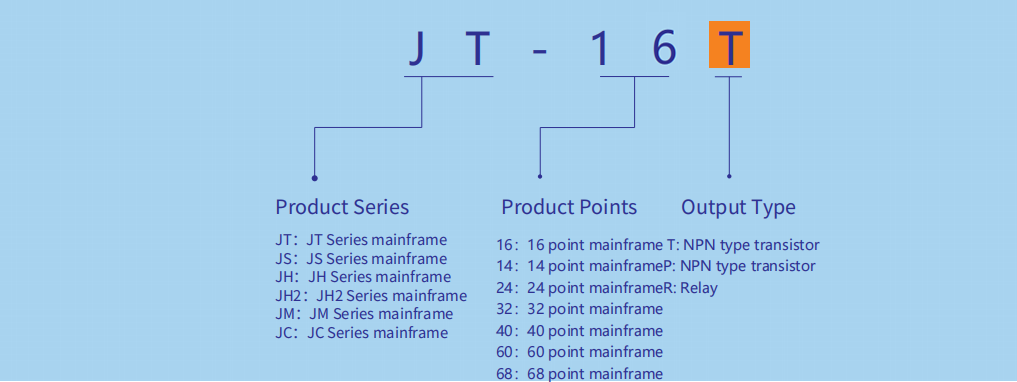

Product Naming Rule
Transistor Output
Model | Function | Other Models | |
The JTC series operates on DC24V power, features relay output, and supports up to 256/256 I/O expansion. Only compatible with TE series. Mixing with other series may cause malfunction. | "×" = Not available. "√" = Available for normal ordering. | ||
Motion Control (M) | PNP Output | ||
JTC-16T4 | 16-point host； 8DI(NPN)/6DO(NPN), including: 2 points (X0~X1) Max 200K high-speed input/ 2 points (X2~X3) Max 50K high-speed input, 4 points up to 200 kHz (factory default: 100 kHz)； Motion Control: Drives up to 4 motors; Programming: Supports C language; Program Capacity: 60K; Communication port: RS232/RS485, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256); Power supply: DC24V； | √ | √ |
Product Features
- 4-channel high-speed pulse input
- Permanent program retention with advanced power-off protection
- Expandable up to 256 Isolated I/O points
- Communication Interfaces: Ethernet & RS485
System Block Diagram
Product Size

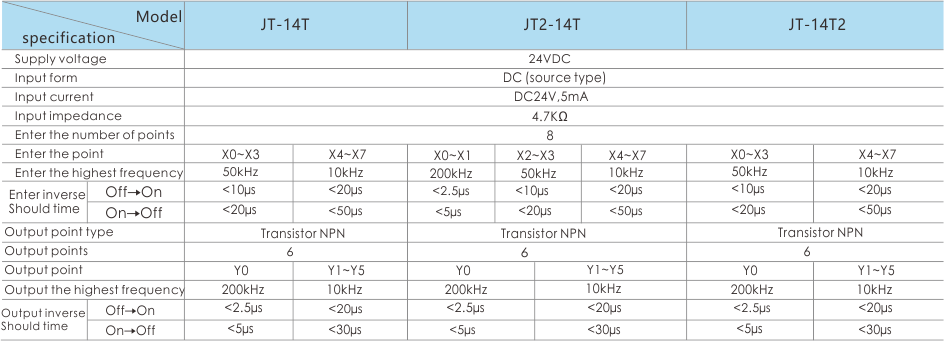

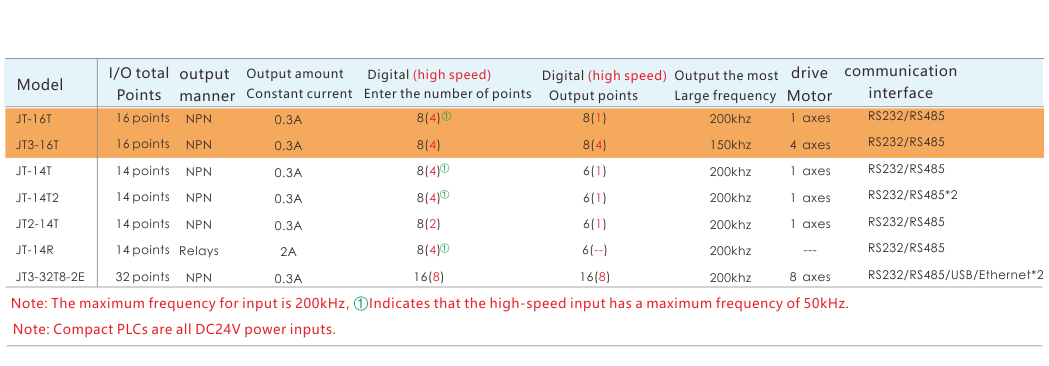

Technical Parameter

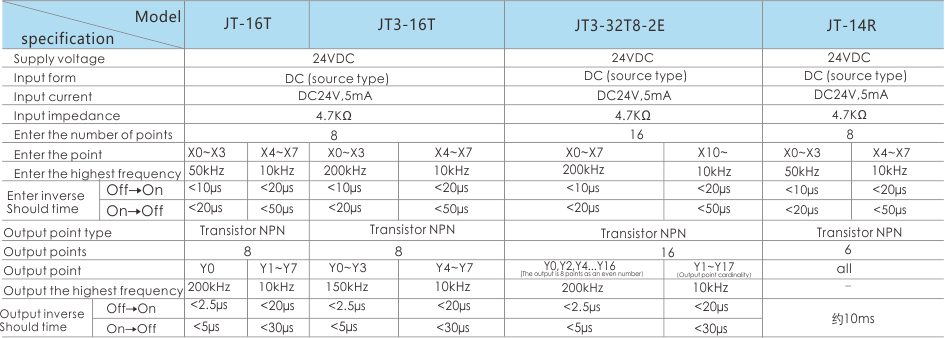

Electrical Specifications
