JT compact 32 point host

+
  • undefined

JT compact 32 point host

Program capacity: 16k program area
Input power supply: DC24V
Communication port: RS485/RS232/USB/Ethernet * 2 (switch function)
Expandable with: TE series

Classification：

Small PLC

JT compact series

32 points

Related Products

JT compact 14 point host

JT compact 14 point host

Program capacity: 16k program area
Input power supply: DC24V
Communication port: RS485/RS232
Expandable with: TE series

See More

JT compact 16 point host

JT compact 16 point host

Program capacity: 16K program area
Input power: DC24V
Communication port:RS485/RS232
Can be combined with extensions: TE series

See More

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Product Functions

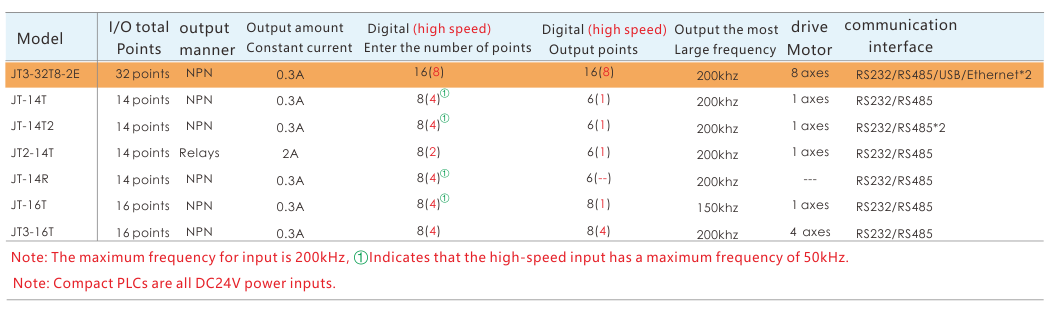

Model Function
JT3-32T8-2E
32-point host, 16DI/16DO (NPN transistor), 8-point maximum 200k high-speed input (X0-X7), 8-point maximum 200K high-speed output, drive motor 8 axes.
Communication port: RS485/RS232/USB/Ethernet*2 (switch function), 16 expansion modules can be connected on the right side (the maximum digital input/output of the host is 256/256).

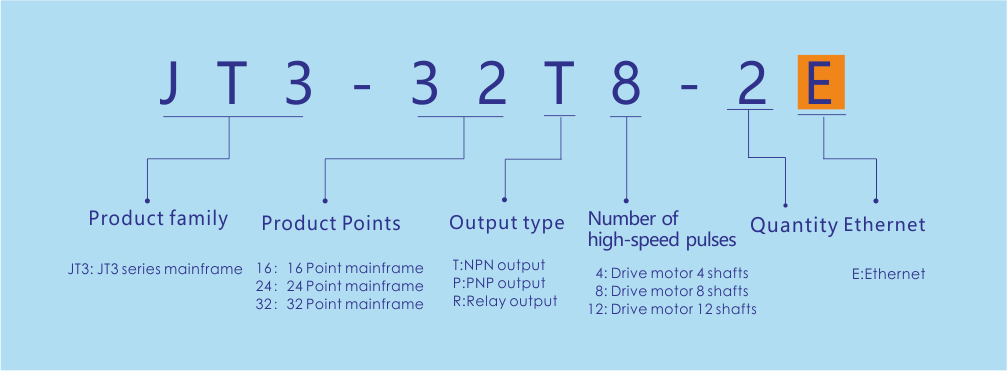

Naming Rules

Product Features

  • Support high-speed pulse input points: 4 points
  • Advanced power-down preservation technology, program permanent storage
  • Expandable to 256 isolated inputs/outputs
  • Communication interface: RS232, RS485

Product wiring

Product size

Technical Parameter

Electrical Specifications
