JHM motion control 16 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port:
RS232/RS485 * 2/USB/Ethernet * 2 (switch function)
Expandable with: HE series

Classification:

Small PLC

JHM series

16 points


Related Products


JHM motion control 24 point host

JHM motion control 24 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port:
RS232/RS485 * 2/USB/Ethernet * 2 (switch function)
Expandable with: HE series

See More

JHM motion control 32 point host

JHM motion control 32 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port:
RS232/RS485 * 2/USB/Ethernet * 2 (switch function)
Expandable with: HE series

See More

JHM motion control 40 point host

JHM motion control 40 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485 * 2/USB
Expandable with: HE series

See More

JHM motion control 48 point host

JHM motion control 48 point host

Program capacity: 30k program area
Input power supply: DC24V/AC100V-240V
Communication port: RS232/RS485 * 2/USB
Expandable with: HE series

See More

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Product Functions

Model Function
JHM-16T4-D
16-point host, 8DI/8DO (NPN), 6-point maximum 200K high-speed input (X0-X5, 3-channel AB phase), 4-point maximum Large 200k high-speed output (factory default maximum frequency is 100k), drive motor 4 axes. With electronic CAM,branch C language, program capacity 30K.
Communication interface: RS232/RS485* 2,1 BD board, the left expansion interface can be connected to the Internet of Things module or 485 communication module, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256), yes Perpetual calendar, DC24V power supply
The corresponding product sticker model is:JHM-16T
JHM-16T4-A
16-point host, 8DI/8DO (NPN), 6-point maximum 200K high-speed input (X0-X5, 3-channel AB phase), 4-point maximum Large 200k high-speed output (factory default maximum frequency is 100k), drive motor 4 axes. With electronic CAM, branch C language, program capacity 30K.
Communication interface: RS232/RS485* 2,1 BD board, the left expansion interface can be connected to the Internet of Things module or 485 Communication module, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256), yes Perpetual calendar, AC100V-240V power supply
The corresponding product sticker model is:JHM-16T
JHM-16T4-E-D
16-point host, 8DI/8DO (NPN), 6-point maximum 200K high-speed input (X0-X5, 3 AB phase), 4-point maximum 200K high-speed output, drive motor 4 axes. With electronic cam, support C language. Communication interface: RS232/RS485*2/Ethernet, 1 BD board, the left expansion interface can be connected to the Internet of Things module or 485 communication module, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256), with perpetual calendar, DC24V power supply
The corresponding product sticker model is: JHM-16T-E
JHM-16T4-E-A
16-point host, 8DI/8DO (NPN), 6-point maximum 200K high-speed input (X0-X5, 3 AB phase), 4-point maximum 200K high-speed output, drive motor 4 axes. With electronic cam, support C language.
Communication interface: RS232/RS485*2/Ethernet, 1 BD board, the left expansion interface can be connected to the IoT module or 485 communication module, the right side can be connected to 16 expansion modules (the maximum digital input/output of the host is 256/256), there is a perpetual calendar, AC100V-240V power supply
The corresponding product sticker model is: JHM-16T-E

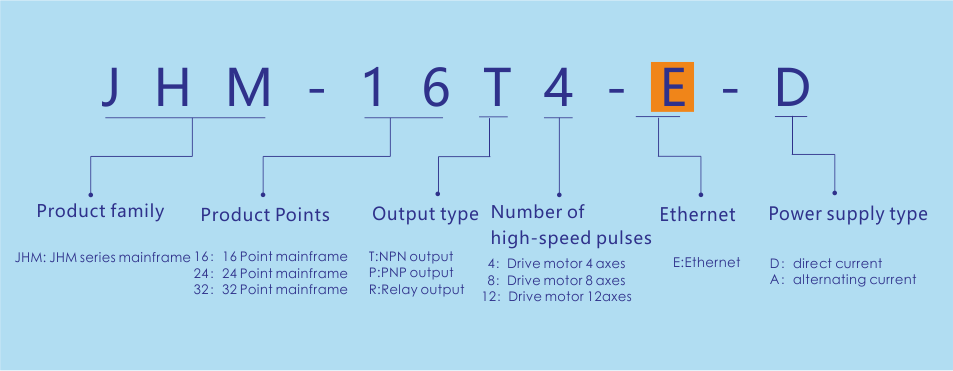

Naming Rules

 Product Features

  • Expandable to 256 isolated inputs/outputs.
  • Advanced power-down preservation technology, program permanent storage.
  • Pulse control mode: can drive up to 12 axis stepper/servo motor.
  • The program is encrypted and can be set whether to upload to protect the user's intellectual property rights.
  • You can download the program by plugging in a USB stick or use a dual-ended USB cable to download and monitor the program, the communication speed is faster, and the download rate can reach 12Mbps.
  • Using RS232, RS485 dual communication ports, can realize HMI or PC communication, compatible with MODBUS ASCII, MODBUS RTU communication protocol.

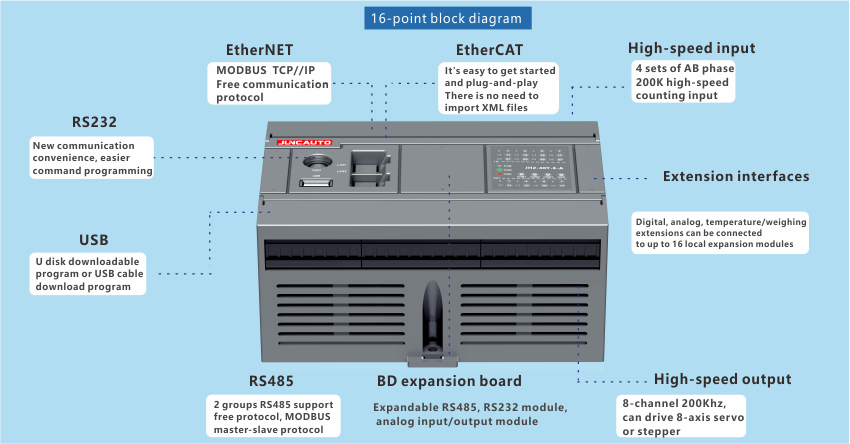

System block diagram

Product wiring

Product size

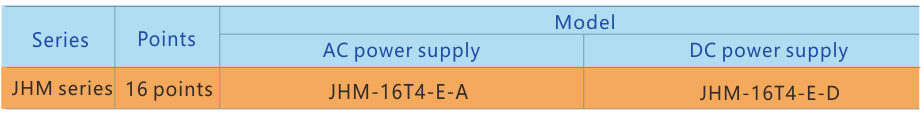

Model List

Electronic cam PLC with oscilloscope function



Motion Control Functions





Typical applications
