SE series digital quantity 8 points

Home page

SE series digital quantity 8 points

Input power supply: DC24V
Can be used in a variety of work environments
High reliability and strong anti-interference ability
Matching hosts: JS, JM, JC, JE, JEM series

Classification：

Expansion module

SE series

8 points

collocation JS/JM/JE/JEM/JC

Related Products

SE series digital quantity 16 points

Input power supply: DC24V
Can be used in a variety of work environments
High reliability and strong anti-interference ability
Matching hosts: JS, JM, JC, JE, JEM series

SE series digital quantity 32 points

Digital input/output expansion
Input power supply: DC24V
High reliability and strong anti-interference ability
Matching hosts: JS, JM, JC, JE, JEM series

SE series digital quantity 40 points

Input power supply: DC24V
Digital input/output expansion
The maximum I/O points of digital quantity are 256DI/256DO
Matching hosts: JS, JM, JC, JE, JEM series

SE thyristor output extension

Input power supply: DC24V
4-point SSR thyristor output
High reliability and strong anti-interference ability
Matching hosts: JS, JM, JC, JE, JEM series

富文本1

富文本2

富文本3

富文本4

Product Description

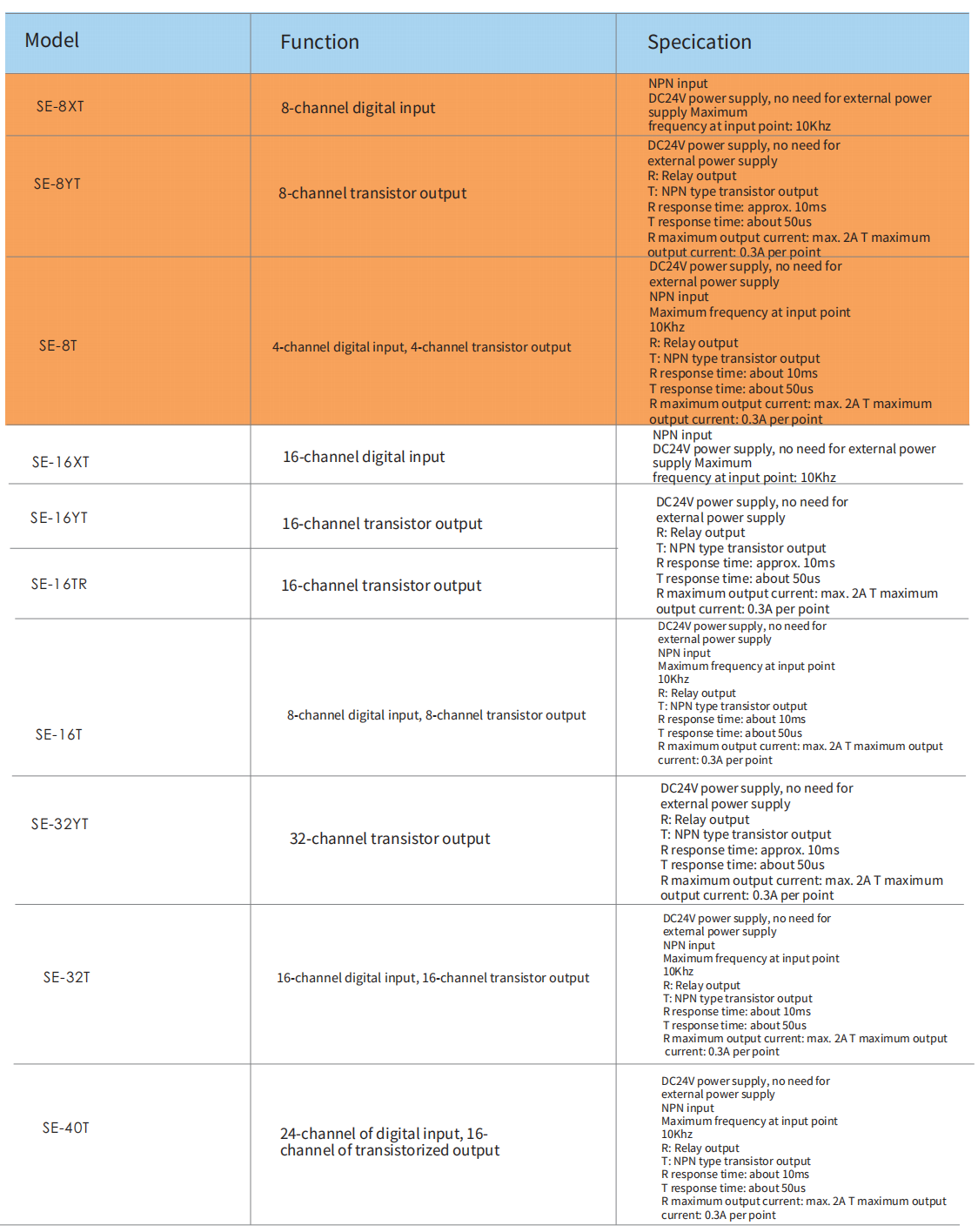

Specifications

Relevant Information

Product Functions

Model	Function
SE-8XT	8-point digital input extension, 8DI (drain type)
SE-8YT	8-point digital output expansion, 8DO (NPN transistor output)
SE-8T	8-point digital input/output expansion, 4DI/4DO (NPN transistor)

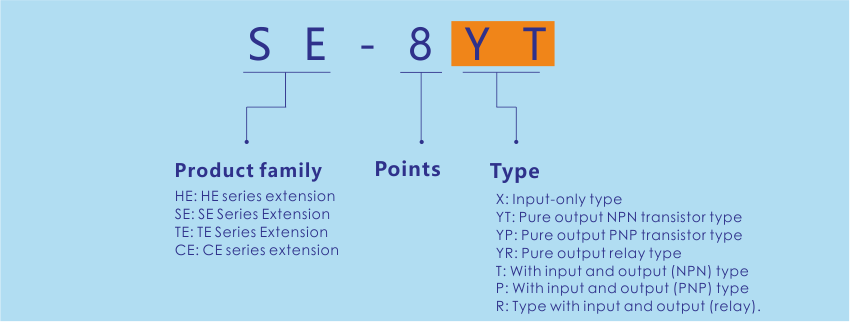

Naming Rules

Product Features

Each channel of input and output adopts photoelectric isolation, which has high reliability and strong anti-interference ability.
The power supply has reverse polarity protection and surge absorption function, which can be applied to a variety of working environments.
The maximum number of digital I/O points is: 256DI/256DO.
One mainframe can carry 16 expansion modules.

Product wiring
