JEM motion control 32 point host

+
  • undefined

JEM motion control 32 point host

Program capacity: 30k program area
Input power supply: DC24V
Communication port: RS232/RS485/USB/Ethernet/EtherCAT bus with electronic cam Expandable with: SE and CE series

Classification：

Small PLC

JEM series

32 points

Related Products

富文本1

富文本2

富文本3

富文本4

Product Description

Specifications

Relevant Information

Product Functions

Model Function
JEM6-1616T-E
32-point host, 16DI/16DO, 8-point AB-phase maximum 200K high-speed input (X0-X7, 4-way AB-phase), 4-point maximum 200K high-speed output.
Communication interface: RS232/RS485/USB/Ethernet/EtherCAT bus (6 axes), 16 extensions can be connected on the right side Module (256/256 maximum digital input/output with host), DC24V power supply
JEM12-1616T-E
32-point host, 16DI/16DO, 8-point AB-phase maximum 200K high-speed input (X0-X7, 4-way AB-phase), 4-point maximum 200K high-speed output.
Communication interface: RS232/RS485/USB/Ethernet/EtherCAT bus (12 axes), 16 extensions can be connected on the right side Module (256/256 maximum digital input/output with host), DC24V power supply
JEM32-1616T-E
32-point host, 16DI/16DO, 8-point AB-phase maximum 200K high-speed input (X0-X7, 4-way AB-phase), 4-point maximum 200K high-speed output.
Communication interface: RS232/RS485/USB/Ethernet/EtherCAT bus (32 axes), 16 expansion modules can be connected to the right side (the maximum digital input/output of the host is 256/256), DC24V power supply

Product Features

  • Expandable to 256 isolated inputs/outputs.
  • Advanced power-down preservation technology, program permanent storage.
  • Pulse control mode: can drive up to 12 axis stepper/servo motor.
  • The program is encrypted and can be set whether to upload to protect the user's intellectual property rights.
  • You can download the program by plugging in a USB stick or use a dual-ended USB cable to download and monitor the program, the communication speed is faster, and the download rate can reach 12Mbps.
  • Using RS232, RS485 dual communication ports, can realize HMI or PC communication, compatible with MODBUS ASCII, MODBUS RTU communication protocol.

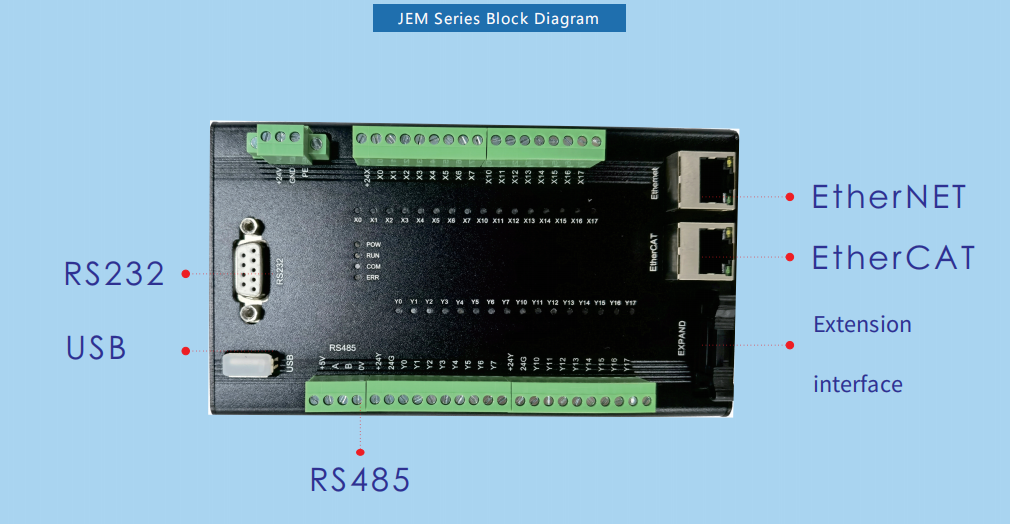

 System block diagram

 Product wiring

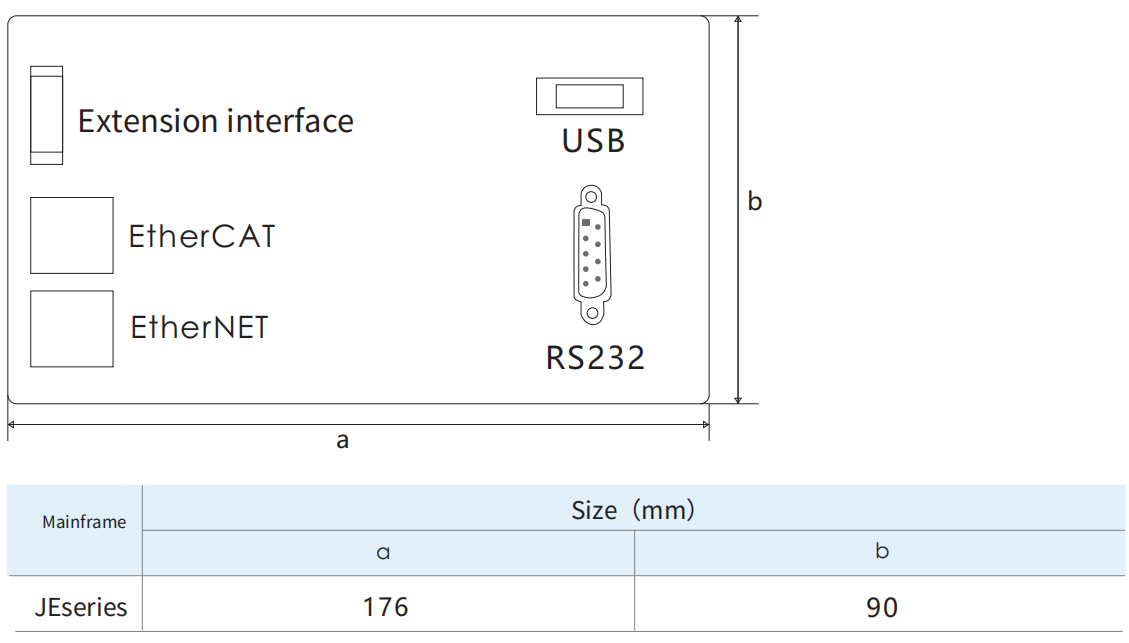

Product Size

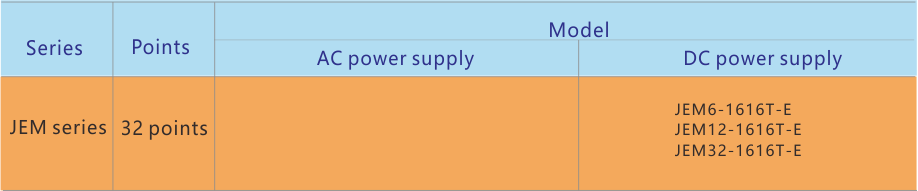

Model List

Electronic cam PLC with oscilloscope function



Motion control functions







Typical applications
